手撸Mybatis（三）——收敛SQL操作到SqlSession

引言

在上一章中，我们实现了读取mapper配置并构造相关的mapper代理对象，读取mapper.xml文件中的sql信息等操作，现在，在上一章的基础上，我们接着开始链接数据库，通过封装JDBC，来实现我们数据库操作。

数据库准备

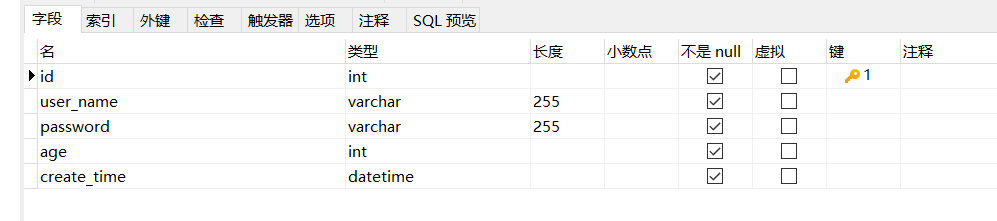

我们创建一个user表，用于后续进行测试，user表的结构如下图所示：

user表的内容如下：

添加User类

我们根据表结构，创建对应的user类，user类的结构如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
package com.yang.mybatis.test;

import java.io.Serializable;
import java.util.Date;

public class User implements Serializable {
    private Integer id;

    private String userName;

    private String password;

    private Integer age;

    private Date createTime;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }
}

JDBC基础操作

在使用jdbc之前，我们先引入mysql的依赖

1
2
3
4
5
<dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.27</version>
        </dependency>

jdbc的操作，一般分为下面几个步骤：
1）加载JDBC驱动程序
2）创建数据库链接
3）创建一个preparedStatement
4）执行SQL语句
5）遍历数据集
6）处理异常，关闭JDBC对象资源
示例代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public static void main(String[] args) throws SQLException {
       String url = "jdbc:mysql://localhost:3306/test?useSSL=false";
       String username = "root";
       String password = "3fa4d180";

       Connection conn = null;
       try {
          // 1. 加载驱动
           Class.forName("com.mysql.cj.jdbc.Driver");
          // 2. 创建数据库链接
           conn = DriverManager.getConnection(url, username, password);
           conn.setAutoCommit(false);

          // 3. 创建preparedStatement
           String sql = "select user_name from user where id = ?";
           PreparedStatement preparedStatement = conn.prepareStatement(sql);
           preparedStatement.setInt(1, 1);
           // 4. 执行sql
          ResultSet resultSet = preparedStatement.executeQuery();
          // 5. 遍历结果
          if (resultSet.next()) {
               System.out.println(resultSet.getString(1));
           }
           conn.commit();
       } catch (SQLException | ClassNotFoundException e) {
           conn.rollback();
           e.printStackTrace();
       } finally {
         // 6. 释放连接
           conn.close();
       }
   }

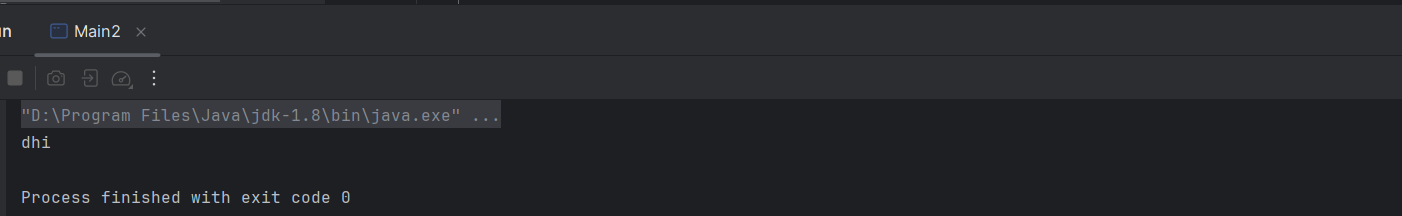

执行上述代码，结果如下：

将sql操作，收敛到SqlSession

在上一章，当我们调用mapper的方法时，最终是通过在MapperProxy中获取对应的MybatisStatement，然后打印出sql信息的，但是如果后续操作数据库是，也在MapperProxy中执行sql的话，不太方便管理。因此，我们添加一个IMybatisSqlSession类，后续对于数据库的操作，收敛到此类进行。
首先，我们添加IMybatisSqlSession：

1
2
3
4
5
6
7
8
9
package com.yang.mybatis.session;

public interface IMybatisSqlSession {

    <T> T execute(String method, Object parameter);

    <T> T getMapper(Class<T> type);
}

然后添加其默认实现：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
package com.yang.mybatis.session;

import com.yang.mybatis.proxy.MapperProxyFactory;

public class DefaultMybatisSqlSession implements IMybatisSqlSession {
    private MapperProxyFactory mapperProxyFactory;

    public DefaultMybatisSqlSession(MapperProxyFactory mapperProxyFactory) {
        this.mapperProxyFactory = mapperProxyFactory;
    }

    @Override
    public <T> T execute(String method, Object parameter) {
        return (T)("你被代理了!" + method + ",入参:" + parameter);
    }

    @Override
    public <T> T getMapper(Class<T> type) {
        return (T) mapperProxyFactory.newInstance(type, this);
    }
}

添加IMybatisSqlSession的工厂接口

1
2
3
4
5
6
package com.yang.mybatis.session;

public interface MybatisSqlSessionFactory {
    IMybatisSqlSession openSession();
}

添加工厂的默认实现：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
package com.yang.mybatis.session;

import com.yang.mybatis.proxy.MapperProxyFactory;

public class DefaultMybatisSqlSessionFactory implements IMybatisSqlSessionFactory {
    private MapperProxyFactory mapperProxyFactory;

    public DefaultMybatisSqlSessionFactory(MapperProxyFactory mapperProxyFactory) {
        this.mapperProxyFactory = mapperProxyFactory;
    }

    @Override
    public IMybatisSqlSession openSession() {
        return new DefaultMybatisSqlSession(mapperProxyFactory);
    }
}

修改MapperProxyFactory，在新建MapperProxy的时候，将imybatisSqlSession传递给MapperProxy。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
package com.yang.mybatis.proxy;

import com.yang.mybatis.config.MybatisConfiguration;
import com.yang.mybatis.session.IMybatisSqlSession;

import java.lang.reflect.Proxy;

public class MapperProxyFactory {
    private MybatisConfiguration mybatisConfiguration;


    public MapperProxyFactory(MybatisConfiguration mybatisConfiguration) {
        this.mybatisConfiguration = mybatisConfiguration;
    }

    public Object newInstance(Class mapperType, IMybatisSqlSession mybatisSqlSession) {
        MapperProxy mapperProxy = new MapperProxy(mapperType, mybatisSqlSession);
        return Proxy.newProxyInstance(mapperType.getClassLoader(),
                new Class[]{mapperType},
                mapperProxy);
    }

    public MybatisConfiguration getMybatisConfiguration() {
        return mybatisConfiguration;
    }

    public void setMybatisConfiguration(MybatisConfiguration mybatisConfiguration) {
        this.mybatisConfiguration = mybatisConfiguration;
    }
}

然后修改MapperProxy，在真正执行的时候，通过iMybatisSqlSession的execute，来执行sql操作，以此实现sql操作由iMybatisSqlSession来统一管理。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
package com.yang.mybatis.proxy;

import com.yang.mybatis.session.IMybatisSqlSession;

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;

public class MapperProxy<T> implements InvocationHandler {

    private Class<T> mapperInterface;

    private IMybatisSqlSession sqlSession;

    public MapperProxy(Class<T> mapperInterface, IMybatisSqlSession mybatisSqlSession) {
        this.mapperInterface = mapperInterface;
        this.sqlSession = mybatisSqlSession;
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        if (Object.class.equals(method.getDeclaringClass())) {
            return method.invoke(this, args);
        }
        String methodName = this.mapperInterface.getName() + "." + method.getName();
        return sqlSession.execute(methodName, args);
    }
}

最后，我们添加sqlSession工厂类的创建者，通过创建者模式，来创建SqlSession工厂

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
package com.yang.mybatis.session;

import com.yang.mybatis.config.MybatisConfiguration;
import com.yang.mybatis.config.MybatisSqlStatement;
import com.yang.mybatis.config.parser.IMybatisConfigurationParser;
import com.yang.mybatis.config.parser.IMybatisMapperParser;
import com.yang.mybatis.proxy.MapperProxyFactory;

import java.util.List;
import java.util.Map;
import java.util.stream.Collectors;

public class MybatisSqlSessionFactoryBuilder {
    private IMybatisConfigurationParser mybatisConfigurationParser;

    private IMybatisMapperParser mybatisMapperParser;

    private String configPath;

    public IMybatisSqlSessionFactory buildSqlSessionFactory() {
        if (configPath == null || configPath.isEmpty()) {
            throw new RuntimeException("配置文件路径不合法==========");
        }
        if (this.mybatisMapperParser == null || this.mybatisConfigurationParser == null) {
            throw new RuntimeException("缺少解析器=======");
        }
        MybatisConfiguration mybatisConfiguration = mybatisConfigurationParser.parser(configPath);
        List<String> mapperPaths = mybatisConfiguration.getMapperPaths();
        for (String mapperPath : mapperPaths) {
            List<MybatisSqlStatement> mybatisSqlStatements = this.mybatisMapperParser.parseMapper(mapperPath);
            Map<String, List<MybatisSqlStatement>> mapperNameGroupMap = mybatisSqlStatements.stream()
                    .collect(Collectors.groupingBy(MybatisSqlStatement::getNamespace));

            for (Map.Entry<String, List<MybatisSqlStatement>> entry : mapperNameGroupMap.entrySet()) {
                String mapperName = entry.getKey();
                List<MybatisSqlStatement> sqlSessionList = entry.getValue();
                mybatisConfiguration.putMybatisSqlStatementList(mapperName, sqlSessionList);
            }
        }

        MapperProxyFactory mapperProxyFactory = new MapperProxyFactory(mybatisConfiguration);
        return new DefaultMybatisSqlSessionFactory(mapperProxyFactory);
    }

    public MybatisSqlSessionFactoryBuilder setConfigPath(String configPath) {
        this.configPath = configPath;
        return this;
    }

    public MybatisSqlSessionFactoryBuilder setMybatisConfigurationParser(IMybatisConfigurationParser iMybatisConfigurationParser) {
        this.mybatisConfigurationParser = iMybatisConfigurationParser;
        return this;
    }

    public MybatisSqlSessionFactoryBuilder setMybatisMapperParser(IMybatisMapperParser iMybatisMapperParser) {
        this.mybatisMapperParser = iMybatisMapperParser;
        return this;
    }
}

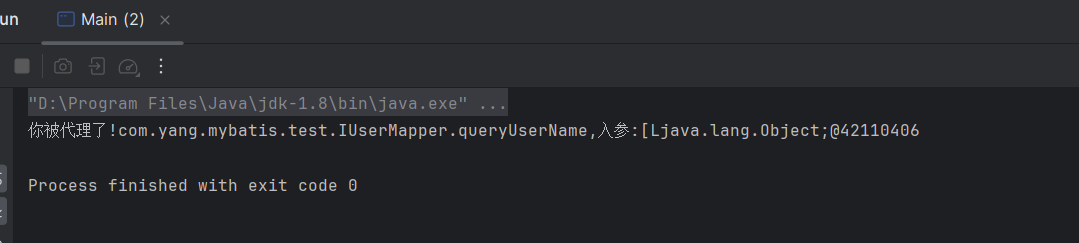

添加测试代码，进行测试：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
package com.yang.mybatis.test;

import com.yang.mybatis.config.parser.XmlMybatisConfigurationParser;
import com.yang.mybatis.config.parser.XmlMybatisMapperParser;
import com.yang.mybatis.session.IMybatisSqlSession;
import com.yang.mybatis.session.IMybatisSqlSessionFactory;
import com.yang.mybatis.session.MybatisSqlSessionFactoryBuilder;


public class Main {
    public static void main(String[] args) {
        String configPath = "mybatis-config.xml";
        IMybatisSqlSessionFactory mybatisSqlSessionFactory = new MybatisSqlSessionFactoryBuilder()
                .setMybatisMapperParser(new XmlMybatisMapperParser())
                .setMybatisConfigurationParser(new XmlMybatisConfigurationParser())
                .setConfigPath(configPath)
                .buildSqlSessionFactory();

        IMybatisSqlSession mybatisSqlSession = mybatisSqlSessionFactory.openSession();

        IUserMapper userMapper = mybatisSqlSession.getMapper(IUserMapper.class);
        System.out.println(userMapper.queryUserName(1));
    }
}

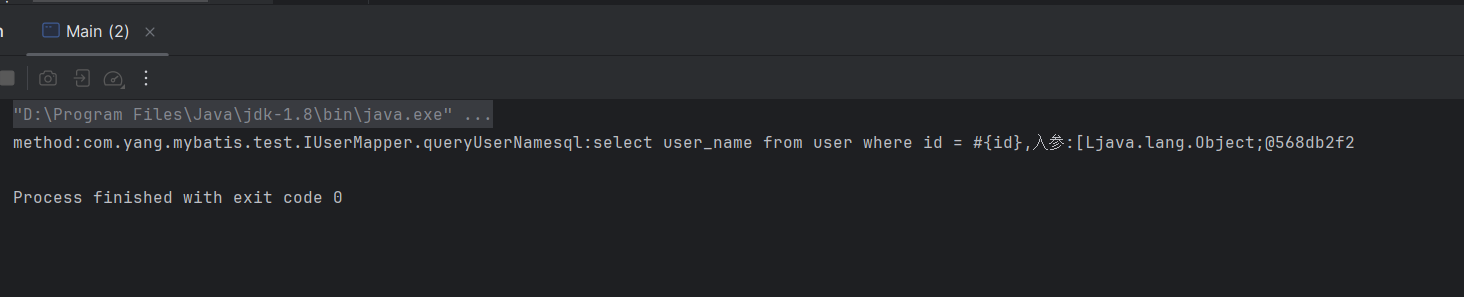

SqlSession获取执行方法对应的sql语句

首先，修改MybatisConfiguration，之前是将每一个mapper和他所拥有的MybatisSqlStatement列表关联起来，现在感觉粒度太大，因此，该为每一个mapper的方法和对应的MybatisSqlStatement关联。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
package com.yang.mybatis.config;

import java.io.Serializable;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class MybatisConfiguration implements Serializable {
    private Map<String, MybatisEnvironment> id2EnvironmentMap = new HashMap<>();

    private MybatisEnvironment defaultMybatisEnvironment;

    private List<String> mapperPaths = new ArrayList<>();

    private Map<String, MybatisSqlStatement> mapperMethod2SqlStatementsMap = new HashMap<>();

    public void putMapperMethod2MybatisSqlStatement(String mapperMethod, MybatisSqlStatement mybatisSqlStatement) {
        this.mapperMethod2SqlStatementsMap.put(mapperMethod, mybatisSqlStatement);
    }

    public MybatisSqlStatement getMybatisSqlStatement(String mapperMethod) {
        return this.mapperMethod2SqlStatementsMap.get(mapperMethod);
    }

    public Map<String, MybatisSqlStatement> getMapperMethod2SqlStatementsMap() {
        return this.mapperMethod2SqlStatementsMap;
    }


    public void addEnvironment(String id, MybatisEnvironment mybatisEnvironment) {
        this.id2EnvironmentMap.put(id, mybatisEnvironment);
    }

    public MybatisEnvironment getEnvironment(String id) {
        return id2EnvironmentMap.get(id);
    }

    public MybatisEnvironment getDefaultMybatisEnvironment() {
        return defaultMybatisEnvironment;
    }

    public void setDefaultMybatisEnvironment(MybatisEnvironment defaultMybatisEnvironment) {
        this.defaultMybatisEnvironment = defaultMybatisEnvironment;
    }

    public void addMapperPath(String mapperPath) {
        this.mapperPaths.add(mapperPath);
    }

    public List<String> getMapperPaths() {
        return this.mapperPaths;
    }

    public List<MybatisEnvironment> getEnvironments() {
        return new ArrayList<>(id2EnvironmentMap.values());
    }

}

然后修改MybatisSqlSessionFactoryBuilder:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
package com.yang.mybatis.session;

import com.yang.mybatis.config.MybatisConfiguration;
import com.yang.mybatis.config.MybatisSqlStatement;
import com.yang.mybatis.config.parser.IMybatisConfigurationParser;
import com.yang.mybatis.config.parser.IMybatisMapperParser;
import com.yang.mybatis.proxy.MapperProxyFactory;

import java.util.List;

public class MybatisSqlSessionFactoryBuilder {
    private IMybatisConfigurationParser mybatisConfigurationParser;

    private IMybatisMapperParser mybatisMapperParser;

    private String configPath;

    public IMybatisSqlSessionFactory buildSqlSessionFactory() {
        if (configPath == null || configPath.isEmpty()) {
            throw new RuntimeException("配置文件路径不合法==========");
        }
        if (this.mybatisMapperParser == null || this.mybatisConfigurationParser == null) {
            throw new RuntimeException("缺少解析器=======");
        }
        MybatisConfiguration mybatisConfiguration = mybatisConfigurationParser.parser(configPath);
        List<String> mapperPaths = mybatisConfiguration.getMapperPaths();
        for (String mapperPath : mapperPaths) {
            List<MybatisSqlStatement> mybatisSqlStatements = this.mybatisMapperParser.parseMapper(mapperPath);
            for (MybatisSqlStatement mybatisSqlStatement : mybatisSqlStatements) {
                String methodName = mybatisSqlStatement.getNamespace() + "." + mybatisSqlStatement.getId();
                mybatisConfiguration.putMapperMethod2MybatisSqlStatement(methodName, mybatisSqlStatement);
            }
        }

        MapperProxyFactory mapperProxyFactory = new MapperProxyFactory(mybatisConfiguration);
        return new DefaultMybatisSqlSessionFactory(mapperProxyFactory);
    }

    public MybatisSqlSessionFactoryBuilder setConfigPath(String configPath) {
        this.configPath = configPath;
        return this;
    }

    public MybatisSqlSessionFactoryBuilder setMybatisConfigurationParser(IMybatisConfigurationParser iMybatisConfigurationParser) {
        this.mybatisConfigurationParser = iMybatisConfigurationParser;
        return this;
    }

    public MybatisSqlSessionFactoryBuilder setMybatisMapperParser(IMybatisMapperParser iMybatisMapperParser) {
        this.mybatisMapperParser = iMybatisMapperParser;
        return this;
    }
}

修改DefaultMybatisSqlSession类，获取方法对应的MybatisStatement

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
package com.yang.mybatis.session;

import com.yang.mybatis.config.MybatisSqlStatement;
import com.yang.mybatis.proxy.MapperProxyFactory;


public class DefaultMybatisSqlSession implements IMybatisSqlSession {
    private MapperProxyFactory mapperProxyFactory;

    public DefaultMybatisSqlSession(MapperProxyFactory mapperProxyFactory) {
        this.mapperProxyFactory = mapperProxyFactory;
    }

    @Override
    public <T> T execute(String method, Object parameter) {
        MybatisSqlStatement mybatisSqlStatement = this.mapperProxyFactory.getMybatisConfiguration().getMybatisSqlStatement(method);
        return (T)("method:" + method + "sql:"+ mybatisSqlStatement.getSql() + ",入参:" + parameter);
    }

    @Override
    public <T> T getMapper(Class<T> type) {
        return (T) mapperProxyFactory.newInstance(type, this);
    }
}

添加测试方法进行测试：

1
2
3
4
5
6
7
8
9
10
11
12
13
public static void main(String[] args) {
       String configPath = "mybatis-config.xml";
       MybatisSqlSessionFactory mybatisSqlSessionFactory = new MybatisSqlSessionFactoryBuilder()
               .setMybatisMapperParser(new XmlMybatisMapperParser())
               .setMybatisConfigurationParser(new XmlMybatisConfigurationParser())
               .setConfigPath(configPath)
               .buildSqlSessionFactory();

       IMybatisSqlSession mybatisSqlSession = mybatisSqlSessionFactory.openSession();

       IUserMapper userMapper = mybatisSqlSession.getMapper(IUserMapper.class);
       System.out.println(userMapper.queryUserAge(1));
   }

测试结果如下：

参考文章

https://blog.csdn.net/weixin_43520450/article/details/107230205

#-Mybatis
手撸Mybatis（三）——收敛SQL操作到SqlSession
https://cxydhi.github.io/2024/05/05/手撸Mybatis（三）——收敛SQL操作到SqlSession/
作者
沉河不浮
发布于
2024年5月5日
许可协议
