在上一节中，我们介绍了SpringBoot中关于定时任务的执行方式，以及ScheduledExecutorService接口提供的定时任务执行方法。假设我们现在要写类似XXL-JOB这样的任务调度平台，那么，对于任务的管理，是尤为重要的。接下来我们将一步一步，实现一个任务调度管理类。
YangJobManager类基础实现
假设我们现在的任务管理类，名为YangJobManager类。对于定时任务的执行，我们最终会调用到ScheduledExecutorService的相关方法，因此，我们的YangJobManager类，需要有ScheduledExecutorService属性，其次，我们希望能对要执行的定时线程任务，其命名进行修改，因此，我们需要有一个线程工厂的属性。基于上述两点，我们对YangJobManager类进行实现：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
| package com.yang.job;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.ThreadFactory;
import java.util.concurrent.TimeUnit;
public class YangJobManager {
private ScheduledExecutorService scheduledExecutorService;
private ThreadFactory threadFactory;
public YangJobManager(ScheduledExecutorService scheduledExecutorService, ThreadFactory threadFactory) {
this.scheduledExecutorService = scheduledExecutorService;
this.threadFactory = threadFactory;
}
public void schedule(Runnable runnable, Long delay) {
Thread thread = threadFactory.newThread(runnable);
scheduledExecutorService.schedule(thread, delay, TimeUnit.SECONDS);
}
public void scheduleWithFixedDelay(Runnable runnable, Long delay, Long period) {
Thread thread = threadFactory.newThread(runnable);
scheduledExecutorService.scheduleWithFixedDelay(thread, delay, period, TimeUnit.SECONDS);
}
public void scheduleWithFixedRate(Runnable runnable, Long delay, Long period) {
Thread thread = threadFactory.newThread(runnable);
scheduledExecutorService.scheduleAtFixedRate(thread, delay, period, TimeUnit.SECONDS);
}
public void shutdown() {
if (this.scheduledExecutorService == null) {
return;
}
if (this.scheduledExecutorService.isShutdown()) {
return;
}
scheduledExecutorService.shutdown();
try {
if (!scheduledExecutorService.awaitTermination(10, TimeUnit.SECONDS)) {
scheduledExecutorService.shutdownNow();
}
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
|
然后，我们实现YangJobThreadFactory，完成对线程的命名
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| public class YangJobThreadFactory implements ThreadFactory {
private String poolName;
private String threadPrefixName;
private static AtomicInteger poolNumber = new AtomicInteger(1);
private AtomicInteger threadNumber = new AtomicInteger(1);
public YangJobThreadFactory(String poolName) {
this.poolName = poolName;
this.threadPrefixName = poolName + "-pool-" + poolNumber.getAndIncrement() + "-thread-";
}
public String getPoolName() {
return this.poolName;
}
@Override
public Thread newThread(Runnable r) {
Thread thread = new Thread(r);
thread.setName(this.threadPrefixName + threadNumber.getAndIncrement());
return thread;
}
}
|
然后我们添加测试方法：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
| public static void main(String[] args) {
ThreadFactory threadFactory = new YangJobThreadFactory("yang");
ScheduledExecutorService scheduledExecutorService = Executors.newScheduledThreadPool(4, threadFactory);
YangJobManager yangJobManager = new YangJobManager(scheduledExecutorService, threadFactory);
yangJobManager.schedule(() -> {
System.out.println(Thread.currentThread().getName() + "schedule定时任务开始执行：" + new Date());
}, 1L);
yangJobManager.scheduleWithFixedDelay(() -> {
System.out.println(Thread.currentThread().getName() + "withFixedDelay定时任务开始执行：" + new Date());
}, 0L, 1L);
yangJobManager.scheduleWithFixedRate(() -> {
System.out.println(Thread.currentThread().getName() + "withFixedRate定时任务开始执行：" + new Date());
}, 0L, 1L);
try {
Thread.sleep(20000);
} catch (InterruptedException e) {
throw new RuntimeException(e);
}
yangJobManager.shutdown();
}
|

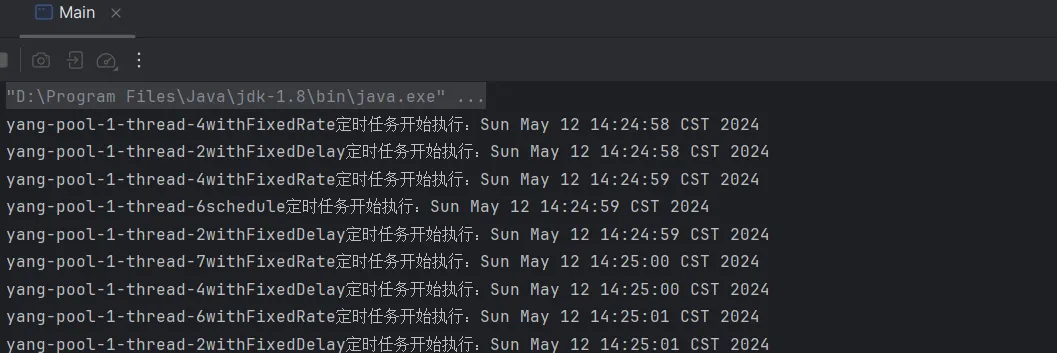

执行结果如下：
提供统一的schedule方法
虽然我们能顺利将任务提交给YangJobManager执行，当感觉还不够收敛，因为我们创建了三个方法：schedule，scheduleWithFixedDelay, shceduleWithFixedRate，每个方法执行逻辑都差不多，最后都是调用scheduledExecutorService的相关方法，我们可以将这些方法都收敛到一个入口——schedule，然后在入参中添加一个参数，表示要执行的策略，根据入参的参数，选择对应的方法执行。
首先，我们添加一个执行策略枚举：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| package com.yang.job.enums;
public enum JobExecuteStrategyEnum {
IMMEDIATE_EXECUTE("immediate", "立即执行"),
ONCE("once", "执行一次"),
WITH_FIXED_DELAY("withFixedDelay", "任务执行完毕后间隔执行"),
WITH_FIXED_RATE("withFixedRate", "任务执行开始后间隔执行");
private String name;
private String description;
JobExecuteStrategyEnum(String name, String description) {
this.name = name;
this.description = description;
}
public String getName() {
return this.name;
}
public static JobExecuteStrategyEnum getJobExecuteStrategyByName(String name) {
if (name == null) {
return null;
}
for (JobExecuteStrategyEnum value : values()) {
if (name.equals(value.getName())) {
return value;
}
}
return null;
}
public static boolean isLegal(String name) {
JobExecuteStrategyEnum jobExecuteStrategyByName = getJobExecuteStrategyByName(name);
return jobExecuteStrategyByName != null;
}
public String getDescription() {
return description;
}
}
|
然后添加YangJobManager的schedule方法的入参类：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| package com.yang.job.request;
import com.yang.job.enums.JobExecuteStrategyEnum;
import lombok.Data;
import java.io.Serializable;
@Data
public class YangJobSubmitParam implements Serializable {
private Runnable runnable;
private Integer initialDelay;
private Integer period;
private JobExecuteStrategyEnum jobExecuteStrategy;
}
|
最后，修改YangJobManager类，将执行定时任务收敛到schedule方法，进入该方法，首先根据入参判断执行策略，如果是immediate，那么直接对入参的runnable调用run方法执行接口，其他的策略则分别对应scheduledExecutorService的schedule、scheduledWithFixedDelay、scheduledWithFixedRate方法，此外，这里对属性也进行修改，去除ThreadFactory属性。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
| package com.yang.job;
import com.yang.job.enums.JobExecuteStrategyEnum;
import com.yang.job.request.YangJobSubmitParam;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;
public class YangJobManager {
private ScheduledExecutorService scheduledExecutorService;
public YangJobManager(ScheduledExecutorService scheduledExecutorService) {
this.scheduledExecutorService = scheduledExecutorService;
}
public void schedule(YangJobSubmitParam yangJobSubmitParam) {
JobExecuteStrategyEnum jobExecuteStrategy = yangJobSubmitParam.getJobExecuteStrategy();
if (jobExecuteStrategy == null) {
throw new RuntimeException("缺少执行策略=========");
}
Runnable runnable = yangJobSubmitParam.getRunnable();
Integer initialDelay = yangJobSubmitParam.getInitialDelay();
Integer period = yangJobSubmitParam.getPeriod();
switch (jobExecuteStrategy) {
case IMMEDIATE_EXECUTE:
runnable.run();
break;
case ONCE:
scheduledExecutorService.schedule(runnable, initialDelay, TimeUnit.SECONDS);
break;
case WITH_FIXED_DELAY:
scheduledExecutorService.scheduleWithFixedDelay(runnable, initialDelay, period, TimeUnit.SECONDS);
break;
case WITH_FIXED_RATE:
scheduledExecutorService.scheduleAtFixedRate(runnable, initialDelay, period, TimeUnit.SECONDS);
break;
}
}
public void shutdown() {
if (this.scheduledExecutorService == null) {
return;
}
if (this.scheduledExecutorService.isShutdown()) {
return;
}
scheduledExecutorService.shutdown();
try {
if (!scheduledExecutorService.awaitTermination(10, TimeUnit.SECONDS)) {
scheduledExecutorService.shutdownNow();
}
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
|
最后，我们添加测试方法：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
| public static void main(String[] args) {
ThreadFactory threadFactory = new YangJobThreadFactory("yang");
ScheduledExecutorService scheduledExecutorService = Executors.newScheduledThreadPool(4, threadFactory);
YangJobManager yangJobManager = new YangJobManager(scheduledExecutorService);
YangJobSubmitParam yangJobSubmitParam1 = new YangJobSubmitParam();
yangJobSubmitParam1.setRunnable(() -> System.out.println("立即执行======" + new Date()));
yangJobSubmitParam1.setJobExecuteStrategy(JobExecuteStrategyEnum.IMMEDIATE_EXECUTE);
YangJobSubmitParam yangJobSubmitParam2 = new YangJobSubmitParam();
yangJobSubmitParam2.setRunnable(() -> System.out.println("执行一次======" + new Date()));
yangJobSubmitParam2.setInitialDelay(1);
yangJobSubmitParam2.setJobExecuteStrategy(JobExecuteStrategyEnum.ONCE);
YangJobSubmitParam yangJobSubmitParam3 = new YangJobSubmitParam();
yangJobSubmitParam3.setRunnable(() -> System.out.println("withFixedDelay=====" + new Date()));
yangJobSubmitParam3.setInitialDelay(1);
yangJobSubmitParam3.setPeriod(2);
yangJobSubmitParam3.setJobExecuteStrategy(JobExecuteStrategyEnum.WITH_FIXED_DELAY);
YangJobSubmitParam yangJobSubmitParam4 = new YangJobSubmitParam();
yangJobSubmitParam4.setRunnable(() -> System.out.println("withFixedRate=====" + new Date()));
yangJobSubmitParam4.setInitialDelay(1);
yangJobSubmitParam4.setPeriod(2);
yangJobSubmitParam4.setJobExecuteStrategy(JobExecuteStrategyEnum.WITH_FIXED_RATE);
yangJobManager.schedule(yangJobSubmitParam1);
yangJobManager.schedule(yangJobSubmitParam2);
yangJobManager.schedule(yangJobSubmitParam3);
yangJobManager.schedule(yangJobSubmitParam4);
try {
Thread.sleep(20000);
} catch (InterruptedException e) {
throw new RuntimeException(e);
}
yangJobManager.shutdown();
}
|

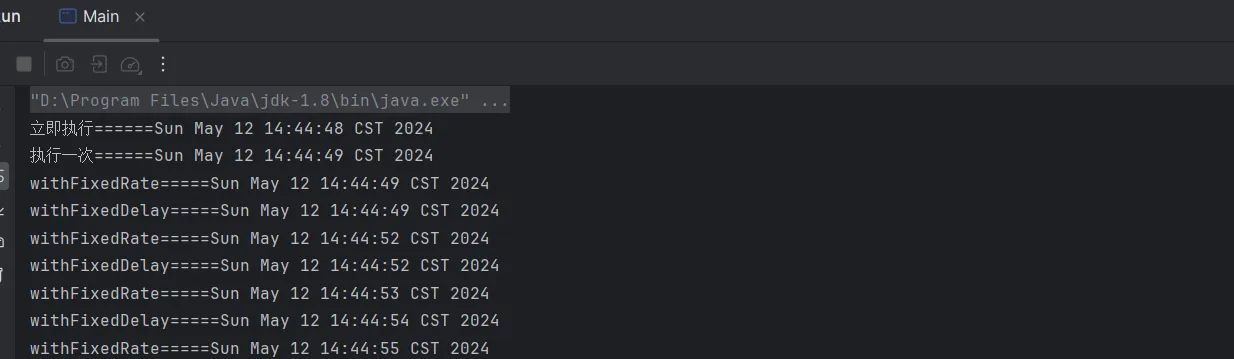

执行结果如下：
提交任务和取消任务
任务的提交对应的是schedule方法，但我们的YangJobManager类缺少了关于任务的取消逻辑。在ScheduledExecutorService的各个定时执行方法中，其返回值是一个ScheduleFuture类，我们可以通过该类的cancel方法，来将对应的线程任务进行取消。此外，对于每一个任务，我们需要有一个任务标识，所以，我们先修改YangJobSubmitParam类：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| package com.yang.job.request;
import com.yang.job.enums.JobExecuteStrategyEnum;
import lombok.Data;
import java.io.Serializable;
@Data
public class YangJobSubmitParam implements Serializable {
private Integer jobId;
private Runnable runnable;
private Integer initialDelay;
private Integer period;
private JobExecuteStrategyEnum jobExecuteStrategy;
}
|
然后，我们修改YangJobManager类，首先将schedule方法改为submit方法，这样更见名知义，在submit方法中，除了理解执行策略外，其他策略都会获取返回的ScheduleFuture，然后存入对应的map，在取消的时候，我们根据jobId从map中找到对应的ScheduleFuture，并执行cancel方法，以此来取消任务。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
| package com.yang.job;
import com.yang.job.enums.JobExecuteStrategyEnum;
import com.yang.job.request.YangJobSubmitParam;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.ScheduledFuture;
import java.util.concurrent.TimeUnit;
public class YangJobManager {
private ScheduledExecutorService scheduledExecutorService;
private Map<String, ScheduledFuture> jobId2ScheduleFutureMap = new ConcurrentHashMap<>();
public YangJobManager(ScheduledExecutorService scheduledExecutorService) {
this.scheduledExecutorService = scheduledExecutorService;
}
public void submitJob(YangJobSubmitParam yangJobSubmitParam) {
Integer jobId = yangJobSubmitParam.getJobId();
if (jobId == null) {
throw new RuntimeException("缺少任务标识=========");
}
ScheduledFuture scheduledFuture = jobId2ScheduleFutureMap.get(jobId.toString());
if (scheduledFuture != null && !scheduledFuture.isCancelled()) {
return;
}
JobExecuteStrategyEnum jobExecuteStrategy = yangJobSubmitParam.getJobExecuteStrategy();
if (jobExecuteStrategy == null) {
throw new RuntimeException("缺少执行策略=========");
}
if (jobExecuteStrategy == JobExecuteStrategyEnum.IMMEDIATE_EXECUTE) {
yangJobSubmitParam.getRunnable().run();
return;
}
scheduledFuture = scheduleJob(yangJobSubmitParam);
jobId2ScheduleFutureMap.put(jobId.toString(), scheduledFuture);
}
public void cancelJob(Integer jobId) {
if (jobId == null) {
return;
}
ScheduledFuture scheduledFuture = jobId2ScheduleFutureMap.get(jobId.toString());
if (scheduledFuture == null) {
return;
}
if (!scheduledFuture.isCancelled()) {
scheduledFuture.cancel(true);
}
jobId2ScheduleFutureMap.remove(jobId.toString());
}
private ScheduledFuture scheduleJob(YangJobSubmitParam yangJobSubmitParam) {
Runnable runnable = yangJobSubmitParam.getRunnable();
Integer initialDelay = yangJobSubmitParam.getInitialDelay();
Integer period = yangJobSubmitParam.getPeriod();
JobExecuteStrategyEnum jobExecuteStrategy = yangJobSubmitParam.getJobExecuteStrategy();
switch (jobExecuteStrategy) {
case ONCE:
return scheduledExecutorService.schedule(runnable, initialDelay, TimeUnit.SECONDS);
case WITH_FIXED_DELAY:
return scheduledExecutorService.scheduleWithFixedDelay(runnable, initialDelay, period, TimeUnit.SECONDS);
case WITH_FIXED_RATE:
return scheduledExecutorService.scheduleAtFixedRate(runnable, initialDelay, period, TimeUnit.SECONDS);
}
throw new RuntimeException("执行策略有误===========");
}
public void shutdown() {
if (this.scheduledExecutorService == null) {
return;
}
if (this.scheduledExecutorService.isShutdown()) {
return;
}
scheduledExecutorService.shutdown();
try {
if (!scheduledExecutorService.awaitTermination(10, TimeUnit.SECONDS)) {
scheduledExecutorService.shutdownNow();
}
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
|
最后，我们添加对应的测试方法：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| public static void main(String[] args) {
ThreadFactory threadFactory = new YangJobThreadFactory("yang");
ScheduledExecutorService scheduledExecutorService = Executors.newScheduledThreadPool(4, threadFactory);
YangJobManager yangJobManager = new YangJobManager(scheduledExecutorService);
YangJobSubmitParam yangJobSubmitParam = new YangJobSubmitParam();
yangJobSubmitParam.setJobId(1);
yangJobSubmitParam.setRunnable(() -> System.out.println("执行任务=====" + new Date()));
yangJobSubmitParam.setInitialDelay(0);
yangJobSubmitParam.setPeriod(2);
yangJobSubmitParam.setJobExecuteStrategy(JobExecuteStrategyEnum.WITH_FIXED_RATE);
yangJobManager.submitJob(yangJobSubmitParam);
try {
Thread.sleep(10000);
} catch (InterruptedException e) {
e.printStackTrace();
}
System.out.println("取消任务==========");
yangJobManager.cancelJob(1);
try {
Thread.sleep(10000);
} catch (InterruptedException e) {
e.printStackTrace();
}
yangJobManager.shutdown();
}
|

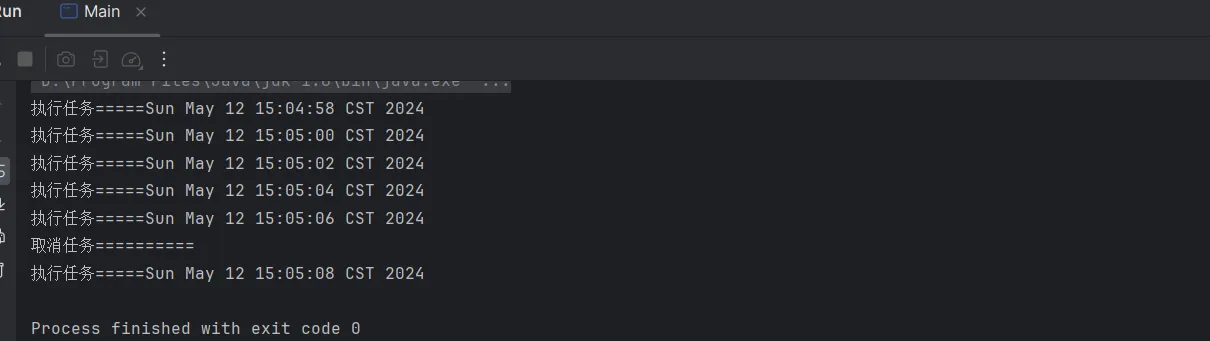

在该方法中，我们提交任务，该任务间隔时间为2秒，10秒过后，取消任务，取消任务过后，再睡眠10秒，在后面10秒钟，不会执行任务（或执行一次，因为在cancel之前刚好有任务没执行完），执行结果如下：
YangJobManager建造者
对于YangJobManager，目前我们所拥有的属性、方法都比较简单，但是如果后续这个类进一步扩展，构造该类可能会变得很麻烦，因此，我们添加一个YangJobBuilder建造者类，用于构造YangJobManager，此外，我们将YangJobManager的构造方法设置为private，从而将构造YangJobManager的职责，彻底收敛到YangJobManagerBuilder类中，我们修改YangJobManager类如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
| package com.yang.job;
import com.yang.job.enums.JobExecuteStrategyEnum;
import com.yang.job.factory.YangJobThreadFactory;
import com.yang.job.request.YangJobSubmitParam;
import java.util.Map;
import java.util.concurrent.*;
public class YangJobManager {
private ScheduledExecutorService scheduledExecutorService;
private Map<String, ScheduledFuture> jobId2ScheduleFutureMap = new ConcurrentHashMap<>();
private YangJobManager(ScheduledExecutorService scheduledExecutorService) {
this.scheduledExecutorService = scheduledExecutorService;
}
public void submitJob(YangJobSubmitParam yangJobSubmitParam) {
Integer jobId = yangJobSubmitParam.getJobId();
if (jobId == null) {
throw new RuntimeException("缺少任务标识=========");
}
ScheduledFuture scheduledFuture = jobId2ScheduleFutureMap.get(jobId.toString());
if (scheduledFuture != null && !scheduledFuture.isCancelled()) {
return;
}
JobExecuteStrategyEnum jobExecuteStrategy = yangJobSubmitParam.getJobExecuteStrategy();
if (jobExecuteStrategy == null) {
throw new RuntimeException("缺少执行策略=========");
}
if (jobExecuteStrategy == JobExecuteStrategyEnum.IMMEDIATE_EXECUTE) {
yangJobSubmitParam.getRunnable().run();
return;
}
scheduledFuture = scheduleJob(yangJobSubmitParam);
jobId2ScheduleFutureMap.put(jobId.toString(), scheduledFuture);
}
public void cancelJob(Integer jobId) {
if (jobId == null) {
return;
}
ScheduledFuture scheduledFuture = jobId2ScheduleFutureMap.get(jobId.toString());
if (scheduledFuture == null) {
return;
}
if (!scheduledFuture.isCancelled()) {
scheduledFuture.cancel(true);
}
jobId2ScheduleFutureMap.remove(jobId.toString());
}
private ScheduledFuture scheduleJob(YangJobSubmitParam yangJobSubmitParam) {
Runnable runnable = yangJobSubmitParam.getRunnable();
Integer initialDelay = yangJobSubmitParam.getInitialDelay();
Integer period = yangJobSubmitParam.getPeriod();
JobExecuteStrategyEnum jobExecuteStrategy = yangJobSubmitParam.getJobExecuteStrategy();
switch (jobExecuteStrategy) {
case ONCE:
return scheduledExecutorService.schedule(runnable, initialDelay, TimeUnit.SECONDS);
case WITH_FIXED_DELAY:
return scheduledExecutorService.scheduleWithFixedDelay(runnable, initialDelay, period, TimeUnit.SECONDS);
case WITH_FIXED_RATE:
return scheduledExecutorService.scheduleAtFixedRate(runnable, initialDelay, period, TimeUnit.SECONDS);
}
throw new RuntimeException("执行策略有误===========");
}
public void shutdown() {
if (this.scheduledExecutorService == null) {
return;
}
if (this.scheduledExecutorService.isShutdown()) {
return;
}
scheduledExecutorService.shutdown();
try {
if (!scheduledExecutorService.awaitTermination(10, TimeUnit.SECONDS)) {
scheduledExecutorService.shutdownNow();
}
} catch (InterruptedException e) {
e.printStackTrace();
}
}
public static class YangJobManagerBuilder {
private ThreadFactory threadFactory;
private ScheduledExecutorService scheduledExecutorService;
public YangJobManagerBuilder() {
}
public YangJobManagerBuilder setThreadFactory(ThreadFactory threadFactory) {
this.threadFactory = threadFactory;
return this;
}
public YangJobManagerBuilder setScheduledExecutorService(ScheduledExecutorService scheduledExecutorService) {
this.scheduledExecutorService = scheduledExecutorService;
return this;
}
public YangJobManager build() {
if (this.threadFactory == null) {
this.threadFactory = new YangJobThreadFactory("yang");
}
if (this.scheduledExecutorService == null) {
this.scheduledExecutorService = Executors.newScheduledThreadPool(Runtime.getRuntime().availableProcessors(),
this.threadFactory);
} else {
if (this.scheduledExecutorService instanceof ScheduledThreadPoolExecutor) {
ScheduledThreadPoolExecutor scheduledThreadPoolExecutor = (ScheduledThreadPoolExecutor) this.scheduledExecutorService;
scheduledThreadPoolExecutor.setThreadFactory(this.threadFactory);
}
}
return new YangJobManager(this.scheduledExecutorService);
}
}
}
|
任务执行类
在之前的代码中，我们的Runnable都是匿名函数类，但是在我们的定时任务调度平台中，一般情况下，这个任务是会持久化到数据库中的，我们一般不会说把这个Runnable的代码也存到数据库吧，一般存储的，应该就是某个任务执行类的类路径，和方法名，以及入参，然后在启动项目时，从数据库中加载这些数据，并通过反射或代理等方式，来构造这个Runnable。
首先，我们定义一个任务执行类，来规范任务的执行方法和入参格式：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
package com.yang.job.execute;
public interface IYangJobExecutor {
void execute(YangJobExecuteRequest yangJobExecuteRequest);
}
package com.yang.job.execute;
import lombok.Data;
import java.io.Serializable;
import java.util.HashMap;
import java.util.Map;
@Data
public class YangJobExecuteRequest implements Serializable {
private String jobId;
private Map<String, String> params = new HashMap<>();
public void addParam(String key, String value) {
params.put(key, value);
}
public String getParam(String key) {
return params.get(key);
}
}
|
接着，我们创建这个YangJobExecutor的实现类，用于测试，在该类中，执行任务的方法很简单，打印当前类的名字以及入参。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| package com.yang.task;
import com.yang.job.execute.IYangJobExecutor;
import com.yang.job.execute.YangJobExecuteRequest;
import java.util.Date;
public class TestJobExecutor implements IYangJobExecutor {
@Override
public void execute(YangJobExecuteRequest yangJobExecuteRequest) {
System.out.println(String.format("%s 任务执行类执行了，入参为：%s, 当前时间:%s",
this.getClass().getName(), yangJobExecuteRequest.toString(),
new Date().toString()));
}
}
|
然后我们创建一个YangJobData，假设我们从数据库中获取的数据格式如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| package com.yang.job.data;
import lombok.Data;
import java.io.Serializable;
@Data
public class YangJobData implements Serializable {
private Integer jobId;
private String cron;
private String executeStrategy;
private String executeClassPath;
private String executeParams;
}
|
executeStrategy表示任务的执行策略，executeClassPath表示要执行的任务类的路径，executeParams表示执行任务方法的入参。
在XXL-JOB中，我们可以使用cron来设置定时任务的执行时间，因此我们这里，也使用cron作为定时任务的执行时间设置，为了解析cron表达式，我们添加下列依赖：
1
2
3
4
5
| <dependency>
<groupId>com.cronutils</groupId>
<artifactId>cron-utils</artifactId>
<version>9.2.0</version>
</dependency>
|
然后创建一个CronUtils工具类，用于解析cron表达式。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
| package com.yang.demo.infra.utils;
import com.cronutils.model.CronType;
import com.cronutils.model.definition.CronDefinition;
import com.cronutils.model.definition.CronDefinitionBuilder;
import com.cronutils.model.time.ExecutionTime;
import com.cronutils.parser.CronParser;
import java.time.ZonedDateTime;
import java.util.Optional;
public class CronUtils {
private static final CronDefinition CRON_DEFINITION = CronDefinitionBuilder.instanceDefinitionFor(CronType.QUARTZ);
private static final CronParser CRON_PARSER = new CronParser(CRON_DEFINITION);
public static ZonedDateTime nextExecutionTime(String cron, ZonedDateTime startTime) {
ExecutionTime executionTime = ExecutionTime.forCron(CRON_PARSER.parse(cron));
Optional<ZonedDateTime> zonedDateTime = executionTime.nextExecution(startTime);
return zonedDateTime.get();
}
}
|
对于执行方法的入参，一般情况下，就是任务的id，以及一些扩展信息，这些扩展信息一般以键值对的形式存储，即”key:value;key:value;”这些形式，所以这里添加一个FeaturesUtils类，用于解析这些键值对信息：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
| package com.yang.job.utils;
import java.util.HashMap;
import java.util.Map;
public class FeaturesUtils {
private final static String KEY_KEY_SEPARATOR = ";";
private final static String KEY_VALUE_SEPARATOR = ":";
public static Map<String, String> convert2FeatureMap(String features) {
Map<String, String> featureMap = new HashMap<>();
if (features == null || features.isEmpty()) {
return featureMap;
}
String[] keyValues = features.split(KEY_KEY_SEPARATOR);
for (String keyValue : keyValues) {
String[] split = keyValue.split(KEY_VALUE_SEPARATOR);
String key = split[0];
String value = split[1];
featureMap.put(key, value);
}
return featureMap;
}
public static String convert2Features(Map<String, String> featureMap) {
if (featureMap == null || featureMap.isEmpty()) {
return "";
}
StringBuilder stringBuilder = new StringBuilder();
featureMap.forEach((key, value) -> {
stringBuilder.append(key)
.append(KEY_VALUE_SEPARATOR)
.append(value)
.append(KEY_KEY_SEPARATOR);
});
return stringBuilder.toString();
}
}
|
然后我们添加测试方法，模拟从数据库中获取数据，并根据任务类路径，获取对应的runnable并提交到YangJobManager中。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
| public static void main(String[] args) {
YangJobData yangJobData = mockYangJobData();
YangJobSubmitParam yangJobSubmitParam = convert2YangJobSubmitParam(yangJobData);
YangJobManager yangJobManager = new YangJobManager.YangJobManagerBuilder()
.setThreadFactory(new YangJobThreadFactory("yang"))
.build();
yangJobManager.submitJob(yangJobSubmitParam);
try {
Thread.sleep(20000);
} catch (InterruptedException e) {
throw new RuntimeException(e);
}
yangJobManager.shutdown();
}
private static YangJobSubmitParam convert2YangJobSubmitParam(YangJobData yangJobData) {
YangJobSubmitParam yangJobSubmitParam = new YangJobSubmitParam();
yangJobSubmitParam.setJobId(yangJobData.getJobId());
yangJobSubmitParam.setJobExecuteStrategy(JobExecuteStrategyEnum.getJobExecuteStrategyByName(yangJobData.getExecuteStrategy()));
ZonedDateTime nextExecutionTime = CronUtils.nextExecutionTime(yangJobData.getCron(), ZonedDateTime.now());
ZonedDateTime nextNextExecutionTime = CronUtils.nextExecutionTime(yangJobData.getCron(), nextExecutionTime);
long nowEochMill = ZonedDateTime.now().toInstant().toEpochMilli();
long executeEochMill = nextExecutionTime.toInstant().toEpochMilli();
long secondExecuteEochMill = nextNextExecutionTime.toInstant().toEpochMilli();
yangJobSubmitParam.setInitialDelay((int)(executeEochMill - nowEochMill) / 1000);
yangJobSubmitParam.setPeriod((int)(secondExecuteEochMill - executeEochMill) / 1000);
try {
Class<?> aClass = Class.forName(yangJobData.getExecuteClassPath());
if (!IYangJobExecutor.class.isAssignableFrom(aClass)) {
throw new RuntimeException("任务类必须实现IYangJobExecutor接口");
}
IYangJobExecutor executor = (IYangJobExecutor) aClass.newInstance();
YangJobExecuteRequest yangJobExecuteRequest = convert2YangJobExecuteRequest(yangJobData);
Runnable runnable = () -> executor.execute(yangJobExecuteRequest);
yangJobSubmitParam.setRunnable(runnable);
} catch (InstantiationException | IllegalAccessException e) {
e.printStackTrace();
} catch (ClassNotFoundException e) {
e.printStackTrace();
}
return yangJobSubmitParam;
}
private static YangJobExecuteRequest convert2YangJobExecuteRequest(YangJobData yangJobData) {
YangJobExecuteRequest yangJobExecuteRequest = new YangJobExecuteRequest();
yangJobExecuteRequest.setJobId(yangJobData.getJobId().toString());
yangJobExecuteRequest.setParams(FeaturesUtils.convert2FeatureMap(yangJobData.getExecuteParams()));
return yangJobExecuteRequest;
}
private static YangJobData mockYangJobData() {
YangJobData yangJobData = new YangJobData();
yangJobData.setJobId(1);
yangJobData.setCron("0/5 * * * * ?");
yangJobData.setExecuteStrategy(JobExecuteStrategyEnum.WITH_FIXED_DELAY.getName());
yangJobData.setExecuteClassPath("com.yang.task.TestJobExecutor");
yangJobData.setExecuteParams("jobId:1;startIndex:1;endIndex:10;");
return yangJobData;
}
|
这里对于cron的解析，其实不是特别好，这里的思路是，获取下一次执行的时间，和下下一次执行的时间，然后以此来计算initialDelay和period，但是如果这个cron表示的是某几天、某几个小时，比如说星期一、星期二、星期三执行，那么我们那种解析方式是有误的，这个可以后续再好好斟酌一下，目前先这样解析。

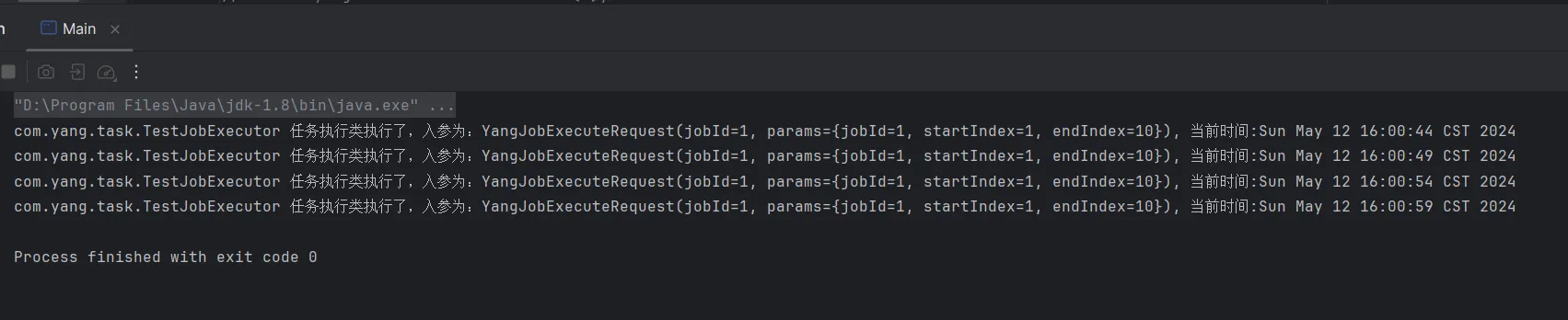

执行结果如下：
